Rockfall Protection Gabion Box for Stone Cage Retaining Wall
Hexagonal Gabion Boxes Introduction
Gabion Box is made of hexagonal wire netting.Wire diameter varies
with the hexagonal nettings.Flat Gabion, called River or Reno
Mattresses, are widely used in river courses where soil erosion is
a problem over a large flat or sloped area in need of protection
against soil loss or scour.They are used mostly in the civil
engineering industry, especially in the construction of roadway
drainage structures.
Gabion nets are widely used in slope protection, foundation pit
protection, side slope greening, railway highway isolation
fences,and can be also made into cages, net mats, used for erosion
protection of rivers,dykes,sea ponds, and reservoirs.
Hexagonal Gabion Boxes Specification
| Galvanized / PVC-coated gabion (customizable) |
| Length(m) | Width(m) | Width(m) | Diaphragm quantity |
| 1 | 1 | 1 | 0 |
| 2 | 1 | 1 | 1 |
| 3 | 1 | 1 | 2 |
| 4 | 1 | 1 | 3 |
| 2 | 1 | 0.5 | 1 |
| 3 | 1 | 0.5 | 2 |
| 1.5 | 1 | 1 | 1 |
| 1.5 | 1 | 0.5 | 1 |
| Mesh size | (PVC wire)Inner/outside | Hot-dip galvanized | Galfan |
| 60*80 | 2.0mm/3.0mm-2.8mm/3.8mm | 2.2mm-3.8mm | 2.2mm-3.8mm |
| 80*100 | 2.2mm/3.2mm-3.0mm/4.0mm | 3.2mm-4.0mm | 3.2mm-4.0mm |
| 100*120 | 2.4mm/3.4mm-3.2mm/4.2mm | 3.4mm-4.2mm | 3.4mm-4.2mm |
| 120*150 | 2.7mm/3.7mm-3.5mm/4.5mm | 3.7mm-4.5mm | 3.7mm-4.5mm |
| Welcome to contact us for any size |

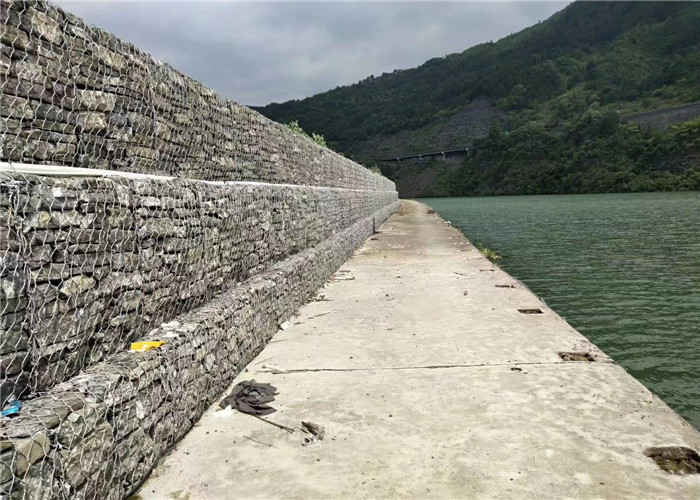

Hexagonal Gabion Boxes Application
A.Reinforce and protect slopes of hills and mountains, road roofs;
B. Reinforce and protect canal roofs, riverbanks and coasts;
C. Reinforcement of dams, spillways, entrances to irrigation works;
D. Reinforcing sloping ground, wall, anti-slip;
E.Protect bridge foot, electric/telephone pole foundation pit;
F. Protection of discharge doors and drains;

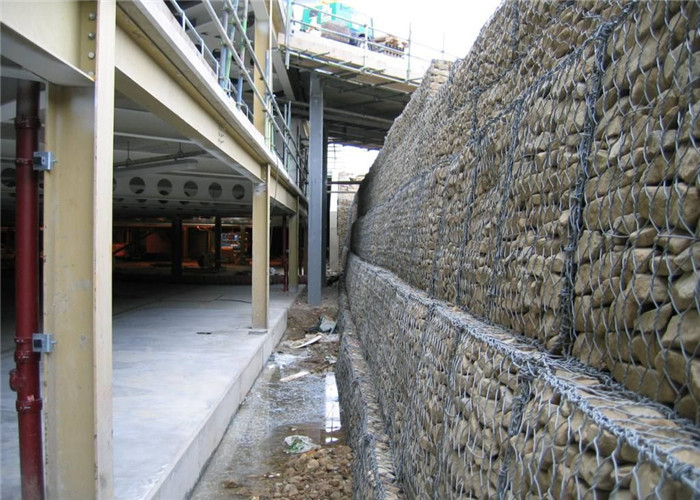

G. Building retaining walls (gravity walls), preventing landslides
of mountainous roads, river banks and coasts;
H. Paving canals/ditches to prevent erosion;
I. Building dams to block water, dams to store water, control,
coordinate and improve flow;
L. Embankments, dams, slopes to prevent landslides, landslides and
erosion

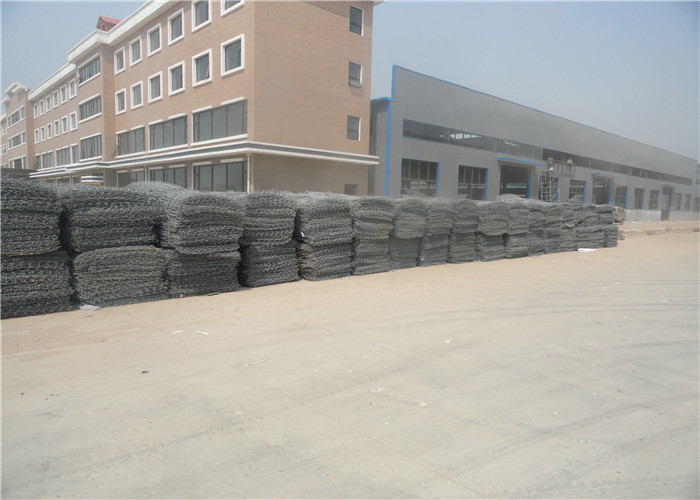

Hexagonal Gabion Boxes Packaging
A.provide save time cost and manage the cost of packaging program.
B.According to customer requirement..
