Product Description:

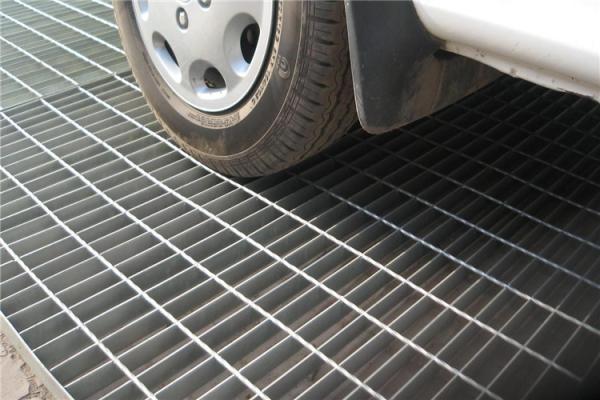

Steel Bar Grating is incredibly popular and is used for numerous
applications. Its strength, cost-efficient production and ease of
installation make it the choice for many industrial plants and
commercial buildings.
Steel Bar Grating can be used as walkways, platforms, safety
barriers, drainage covers and ventilation grates. It is a highly
versatile and adaptable choice.
Features:
- Product Name: Galvanized Steel Bar Grating
- Bearing Bar Spacing: 30mm, 40mm, 60mm
- Width: Customized
- Bearing Bar Thickness: 3mm, 4mm, 5mm, 6mm
- Cross Bar Spacing: 50mm, 100mm
- Welded Serrated Plain Bar Carbon Hot DIP Galvanizing Steel Structure Grating
- Galvanized Bar Grating From Professional Galvanized Grating Manufacturer
- Floor Drain Cover Industrial Walkways Steel Bar Grating
- Hot DIP Galvanized Steel Bar Grating Floor Safety Steel Grate
Technical Parameters:
| Cross Bar Shape | Surface Treatment |
|---|
| Twisted Square, Round, Rectangular | Galvanized, Painted, Untreated |
| Material | Width |
|---|
| Q235,Mild Steel,Stainless Steel | Customized |
| Color | Cross Bar Height |
|---|
| Black, Silver, Yellow, Blue | 20mm, 25mm, 30mm, 40mm, 50mm, 60mm, 80mm, 100mm |
| Bearing Bar Height | Bearing bar size |
|---|
| 20mm, 25mm, 30mm, 40mm, 50mm, 60mm, 80mm, 100mm | 25x3, 25x4, 30x3, 30x4, 30x5, 32x5 |
| Length | Application |
|---|
| Customized | Industrial Platforms, Walkways, Stair Treads, Drainage Covers, Etc. |
Applications:
For ships, rotation ways, channels and platforms can be found in
pump rooms and engine rooms.
Railway bridge sidewalks and over-bridges across the street also
need strong flooring.
Oil extraction sites, car washing sites and air towers all require
reliable platforms.
Fencings around car-parks, buildings and roads are necessary, in
addition to drainage trench covers and drainage pit covers that can
withstand large amount of force.
Packing and Shipping:
Steel Bar Grating is usually packaged with a variety of methods
including wooden pallets, bundles or crates.
FAQ:
- Q: What is the Brand Name of Steel Bar Grating?
- A: The Brand Name of Steel Bar Grating is ZhongTeng.
- Q: What is the Model Number of Steel Bar Grating?
- A: The Model Number of Steel Bar Grating is ZT--016.
- Q: Where is the Steel Bar Grating from?
- A: The Steel Bar Grating is made in China.
- Q: Is Steel Bar Grating Quality Assured?
- A: Yes, Steel Bar Grating has ISO9001 certification.
- Q: What is the Minimum Order Quantity for Steel Bar Grating?
- A: The Minimum Order Quantity for Steel Bar Grating is 400 M2.
